How to Create CAD Drawing Design: Step-by-Step Guide

A product idea may look great on the screen, but can another team accurately build the design in real life from your drawings? Missing dimensions, unclear annotations, or out-of-date files can turn a potentially great product into a cycle of costly revisions. For a start-up, this can delay product development; for an established company, this can throw production schedules and budgets off tremendously.

A reliable CAD drawing design serves as a bridge between design intention and actual implementation. It provides the designers, engineers, and manufacturers with all the technical information that is required. With experienced CAD drafting services, businesses are able to transform ideas into technical drawings. This article discusses how to develop CAD drawings, check their accuracy and prepare them for their intended application.

What Makes a CAD Drawing Ready for Production?

A CAD drawing is ready for production when it conveys the information that the next party needs to know without having to guess. It must represent the approved design and indicate relevant dimensions and include relevant material, tolerance, and assembly information.

However, completeness is determined based on the drawing’s purpose. A concept drawing may suffice for a design review at the beginning of the process while a manufacturing drawing should have sufficient detail to instruct production. The key to determining completeness is understanding what is needed to achieve the intended purpose.

For a broader introduction to drawing types and applications, read What Is a CAD Drawing? Components, Purpose & Common Uses Explained.

How to Create a CAD Drawing: The Essential Steps

1. Define the Design Intent and Requirements

Before starting to write, make sure to understand what you want your design to say and who will be reading it. Collect the design sketches, reference drawings, confirmed dimensions, materials, and technical requirements.

Check if there is any information you might be lacking. If there is, make sure to note it down instead of assuming and risking a faulty design.

2. Choose the Right CAD Approach

Buildings can be drafted using different methods according to their complexity, purpose. 2D drawings are more appropriate for layouts, elevations, and component details, whereas 3D modeling would be better to represent the objects’ complex geometry and study their assembly.

It is worth mentioning that sometimes projects need both variants to ensure that all details are studied. After that, the team should choose one of the options to avoid extra expenses due to over-complication of instructions.

3. Develop the Drawing and Add Technical Details

Build the geometry using the agreed dimensions and design specifications. Keep the drawing organised so that other team members can review and update it easily.

Add the details required to interpret the design accurately, including:

Critical dimensions, clearances and connection points
Material specifications, thicknesses and finishes
Tolerances and relevant technical notes
Section views, enlarged details and assembly references

Include information that affects fit, function or manufacturing, and avoid unnecessary annotations that make the drawing harder to read.

4. Check Dimensions and Design Conflicts

Evaluate the illustration concerning the original specifications. Check the critical measurements, interfaces of components, clearances and connections prior to issuing it.

For instance, a custom cabinet might well fit on paper but if the site measurements have been incorrectly taken it may not fit in the real world. Examine the applicable conditions at the location and address any interface discrepancies prior to granting final approval.

5. Prepare and Issue the Final Documentation

Once the drawing passes its technical checks, prepare the required deliverables, such as editable CAD files, PDFs and 3D models.

Confirm that the documentation includes a drawing title, reference number, revision details and approval status where applicable. Maintain clear revision records so everyone works from the correct version.

For more information about editable CAD file formats, read CAD File Formats Explained: What Designers and Manufacturers Need to Know.

How Much Detail Does Your Drawing Need?

The level of detail should match the drawing’s purpose. Too much detail wastes time, while too little creates confusion and delays.

Drawing Purpose	Typical Level of Detail
Concept development	Overall shape, key dimensions and design intent
Design review	Dimensions, materials and component relationships
Engineering coordination	Interfaces, clearances, tolerances and connections
Production or installation	Detailed dimensions, specifications, assembly information and relevant notes

How CAD Drawing Requirements Differ Across Industries

The information required in a CAD drawing depends on what a business intends to build and how the design will be used. Although product designers, mechanical engineers and millwork specialists all use CAD, each requires different technical details. Drafting CAD drawings for these applications means selecting the right views, dimensions, specifications and annotations to communicate the design accurately and support the next stage of the project.

Product design: The technical drawings may be required to provide information on the components’ sizes, materials, connections, and details needed to develop a prototype.
Mechanical engineering: The technical drawings may be required to specify the tolerance, connections, and location of holes and other details involved in fitting parts together.
Architectural millwork: The technical drawings may be required to provide plans, elevations, sections, dimensions, and other details needed to install custom-built cabinets and other fixtures.

These differences matter when defining a project brief. Identifying the final application early helps determine which views, dimensions and supporting documents the drawing needs. It also prevents businesses from investing time in documentation that is either insufficient for the next stage or unnecessarily detailed for its purpose.

Common CAD Drawing Mistakes and How to Avoid Them

Small errors in a computer-aided design drawing may create room for misinterpretations and possible need for further amendments as the design is moved forward. Below is a table showing some problems and how they can be avoided.

Common mistake	Potential impact	How to avoid it
Starting without a clear brief	The drawing does not meet the project’s actual requirements.	Confirm the design intent, scope and deliverables before drafting.
Using inconsistent drawing standards	Layers, line types and annotations become difficult to interpret.	Use an approved CAD template and follow consistent drafting standards.
Missing or duplicated dimensions	Critical measurements become unclear, leading to errors or clarification requests.	Check that every required dimension is clear, consistent and shown only where appropriate.
Incorrect callouts and references	Notes point to the wrong features or views, causing confusion.	Verify all callouts, detailed references and cross-references before issuing the drawing.
Leaving assumptions undocumented	Unconfirmed details may be mistaken for approved specifications.	Clearly flag provisional dimensions, pending decisions and unverified information.
Poor revision control	Teams may use outdated drawings or miss important design changes.	Assign revision numbers, maintain an issue history and identify the latest approved files.

What to Look for in a CAD Drafting Partner

Selecting a CAD drafting partner is not as simple as it may seem. A professional partner will recognize the details of your project and your design process. Following are some of the criteria that you should consider before finalizing your choice.

Relevant industry experience: Ask about the company’s experience with your particular drawing types and technical requirements.
Consistent drafting standards: Inquire if the provider can follow your templates, title blocks, layer conventions and documentation standards.
Quality control: Find out how drawings are checked for dimensional accuracy, consistency and compliance with project specifications prior to delivery.
Revision management: Clarify how design changes, queries and drawing updates will be handled throughout the project.
Software compatibility: Confirm that the provider can provide you with editable files in the formats your team is able to edit.
Confidentiality and data security: Ask how project files are protected and if non-disclosure agreements are available, if necessary.
A trial project: Consider starting with a small, paid assignment to evaluate the quality, communication and timely fulfillment before committing to larger projects.

How Do You Know Your CAD Drawing Is Ready to Be Shared?

Prior to producing the drawing, consider whether it will provide the recipient with sufficient information to accomplish the objective. The below questions are useful in determining if the documentation is complete.

Does the drawing reflect the latest approved design?
Are critical dimensions and material specifications confirmed?
Are connections, clearances and assembly relationships clear?
Have unresolved decisions been identified rather than hidden?
Are the file format, revision and approval status correct?
Can the recipient identify what they need to manufacture, review or install?

The final check should be concerned with the purpose of the drawing, not with whether everything is present. A drawing for an early design review will have different acceptance criteria from one that has been released for manufacturing.

How Shalin Designs Helps Turn Design Concepts into Technical Documentation

From concept to technical drawing, it is not only a matter of using CAD software, but rather of having a complete understanding of what the design means and how much information the next team will require.

Shalin Designs supports businesses with CAD design and drafting services, including 2D drafting, 3D CAD modelling services, millwork shop drawings and mechanical sheet metal design. The team also helps convert legacy sketches into digital drawings.

This support can be valuable when a startup needs to develop its first product drawings, an engineering team needs additional drafting capacity, or a designer must prepare detailed documentation for a custom project.

Final Takeaway

Unlike a simple graphic, a CAD drawing that meets industry standards requires a number of steps to ensure that it contains all the necessary information. First of all, it is needed to establish the design intent and choose the strategy for presenting information on the paper or screen. Then, it is possible to add the required details for the proper description of the presented project for a specific purpose. Finally, it is essential to check and verify the correctness of the provided data and its correspondence with the issued documentation.

For companies that specialize in the development of products and technical projects, the correct drafting strategy is a critical step in the design process. At the same time, not all departments of an organization have the skills and capabilities to manage such tasks. In this case, specialized technical drafting services will help create and design complete, well-structured drawings in accordance with the established requirements and standards.

If your team needs support with 2D drafting, 3D modelling or detailed engineering drawings, contact Shalin Designs to discuss your project and its documentation needs.

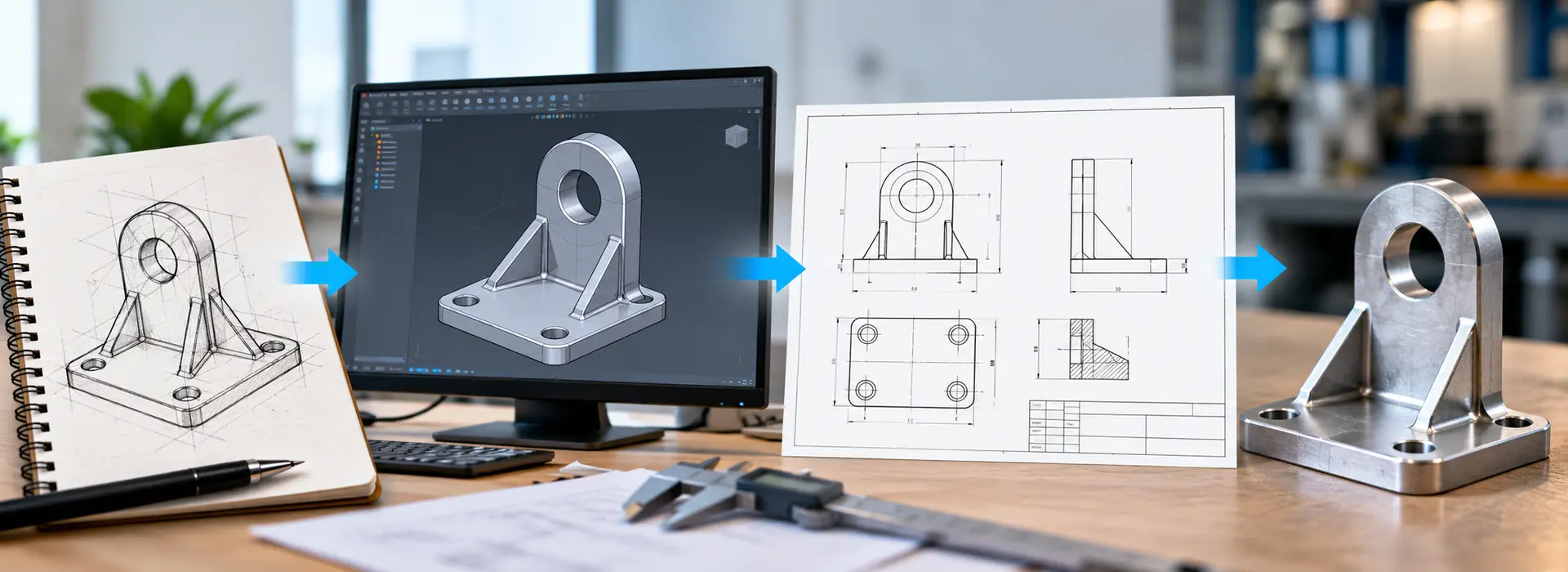

How to Create CAD Drawing Design: From Design Intent to Final Documentation
