How should detailed callouts be coordinated between plan, elevation and section sheets?

Use consistent detail numbers and reference markers to connect related views. Each callout should identify the relevant drawing or sheet and the location being enlarged. Check that the referenced detail matches the same component and revision shown in the main views.

When is a larger-scale detail necessary instead of adding dimensions to an elevation?

Use an enlarged detail to show the connection, joint, fixing, material transition or tight clearance that cannot be shown clearly in the elevation. Adding more dimensions to a busy view may just muddy it up without solving the construction question.

How should reveals and gaps be represented in millwork details?

Show reveals and gaps clearly on the relevant elevation or enlarged detail. Where the gap is a critical value, give an explicit dimension or a requirement specific to the project, rather than relying on visual implication. Coordinate the requirement with adjoining components and specified materials.

How should concealed blocking be shown in a millwork section?

Show the blocking in the section or an enlarged connection detail indicating its location, plus the relevant dimensions and its relation to the cabinet or wall mounted component. Specify the materials and fixings to be used if applicable. Check with the relevant parties that the supporting construction can carry the required load rather than assuming that the existing wall is always a suitable substructure.

What drawing scale is appropriate for reviewing small joinery conditions?

The appropriate scale should be chosen based on the complexity of the connection and the content that needs to be conveyed. A scale of 1:5 or 1:2 would be sufficient to illustrate minor joints and interfaces, whereas more involved conditions require a further enlargement. Ensure that the scale is adequate to incorporate the details concerning dimensions, materials and fixing details on the issued drawing.

Millwork Details: Plans, Elevations, Sections & Drawings

A gap between two cabinets, a misplaced panel or a non-obvious fixing point can create problems if a millwork design makes its way to the workshop. In most of the cases, this happens due to drawings that leave too much space for interpretation.

Well-prepared millwork details help bridge the gap between design and fabrication by showing how individual components fit together. Through millwork shop drawing services, these requirements can be documented in coordinated plans, elevations, sections and enlarged details. Understanding the purpose of each drawing helps designers communicate their intent clearly and gives manufacturers the information they need to build with greater accuracy.

The article focuses on what architects, interior designers, millwork designers, and manufacturers need to understand about how plans, elevations, sections, and enlarged details work together to communicate a design clearly before fabrication. It also explains where professional millwork shop drawing services can add value, without turning the guide into a generic agency pitch.

What Are Millwork Details?

Millwork details are technical drawings that convey information about how custom woodwork and fitted interior features should be measured, constructed and installed. It provides the information needed to interpret a design concept and is followed by cabinet makers, millwork manufacturers, contractors and installers.

The drawings typically include information related to cabinetry, reception desks, panelling, shelving, wardrobes, counters and other items of architectural woodwork.

A complete drawing set typically combines four main views:

Plans: Show the layout and arrangement from above.
Elevations: Show the front or side appearance.
Sections: Reveal the internal construction through a cut.
Detail drawings: Explain specific joints, fixings, material transitions and other complex conditions at a larger scale.

Understanding Different Millwork Drawing Types

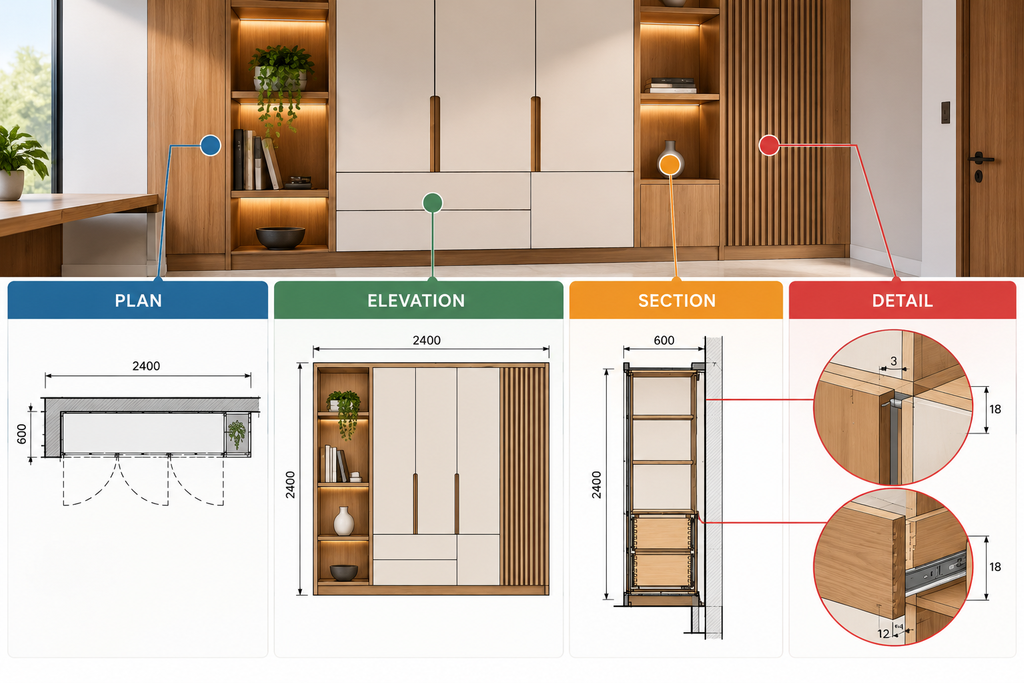

A complete millwork drawing package contains drawings of different views of the design, which describe in detail the construction and installation of millwork within the spatial structure. The drawings are designed in such a way that each of them describes a particular aspect of the project, and all together they contain the necessary information for the fabricator for its implementation. These details allow the designer to coordinate the requirements and see possible problems with the construction before its actual construction.

Millwork Plans

These plans show the unit in its relationship to the walls, adjoining fixtures and other elements of a plan or horizontal view. They indicate the overall dimensions and location of cabinets, clearances and operating space for doors or drawers, and will help identify potential conflicts with electrical outlets, plumbing and other services before fabrication.

Millwork Elevations

These drawings show the architectural unit in either end or front view and show its height, door and drawer configuration, panel divisions and appearance. They enable the architects and designers to review the millwork’s proportions and check conformance to design intent, but do not necessarily show the interior details, materials and construction, and hence the need to see the sections and details.

Millwork Sections

These drawings depict a cut-away view of the unit to reveal such details as the cabinet depth, thickness of panels and shelves, internal construction, and details of supports and connections to the floor or other structures. Sections are used to show the assembly and installation features of cabinets and other furnishings more clearly than can be shown in front and top views. By using this method, the fabricator can see how parts fit together and how the unit is to be installed.

Millwork Detail Drawings

These drawings illustrate specific conditions, such as joinery, edges, fastenings, reveals and transitions, by showing them in an enlarged view so that they can be clearly seen and understood. Used as shop drawings for millwork, they identify those details not sufficiently evident on a plan, elevation, or section drawing. By developing these shop drawings as part of the millwork detail drawings, the architect can help define the design’s construction requirements and reduce fabrication and installation errors.

How the Drawings Should Work Together

Each millwork drawing highlights a different aspect of the design and its coordination ensures that the measurements, materials and construction standards are consistent from design reviews through fabrication and installation.

Match dimensions on all views: Make sure the overall widths, heights and depths shown on the millwork plans correlate between the elevations, sections and any enlarged detail drawings to avoid conflicting dimensions.
Maintain consistent references: Cross-reference plans, elevations, sections and enlarged detail drawings using clearly annotated callouts so fabricators can quickly identify the relevant information.
Clarify construction details: Use sections and shop drawing details to describe internal supports, panel thickness, joints, fixings, connections, and any other features that are not apparent in the plans or elevations.
Coordinate interfaces with other trades: Confirm the millwork interfaces appropriately with walls, floors, ceilings, electrical, plumbing, and other adjacent furnishings.
Clearly show reveals and material transitions: Make sure gaps, edge treatments, and junctions between materials are clearly indicated and consistent across all views.
Keep revisions coordinated: Any changes made to a millwork detail should be reflected in all related drawings so the complete set of furniture plans is coordinated and reflects the same dimensions and construction details.
Verify the buildability prior to fabrication: Review the complete set of millwork architectural details to confirm there is no missing information, construction connections or installation conflicts prior to the drawings being issued to the workshop.

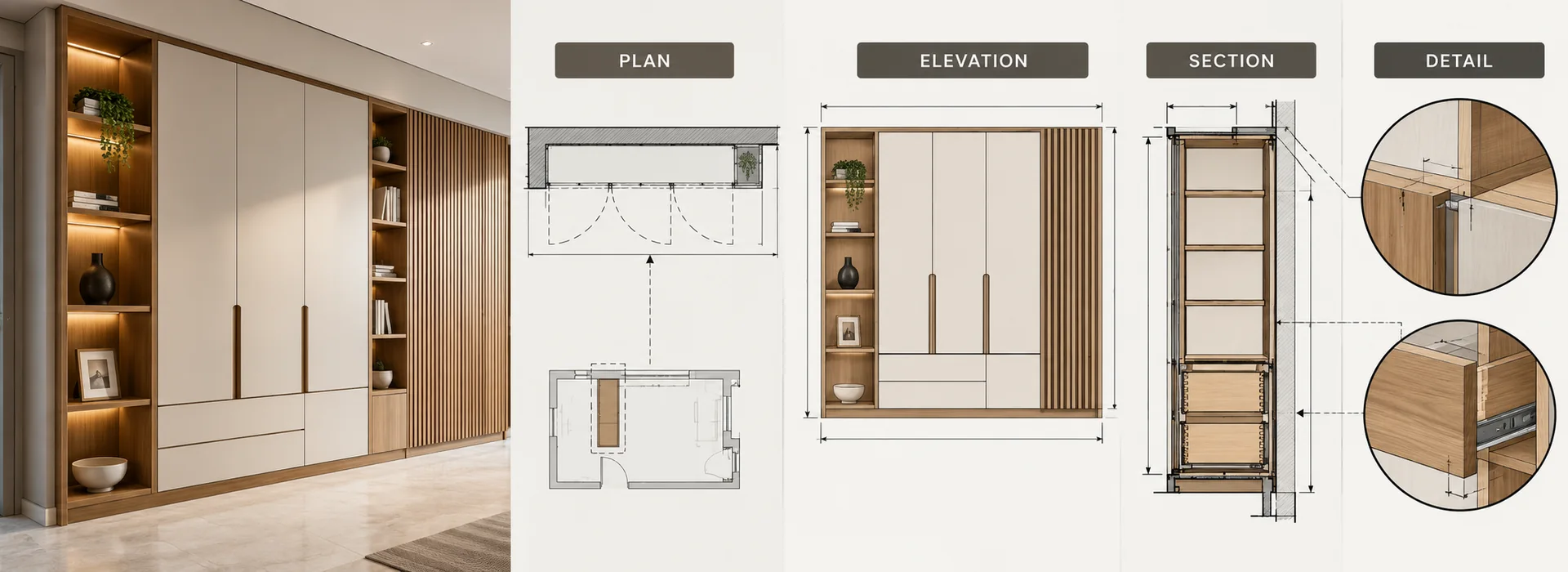

How Plans, Elevations, Sections and Details Work Together

These drawings are not just separate documents that happen to describe the same design. They are a coordinated set of views, in which each view provides information that the other views don’t.

Drawing Type	Information Provided	How It Works with Other Drawings
Millwork Plans	Unit locations, overall dimensions, layout and clearances	Establish the footprint and position of each unit for elevations and sections to develop further.
Millwork Elevations	Visible faces, heights, door and drawer layouts, and panel arrangements	Define the intended appearance and identify components that require further explanation in sections or detail drawings.
Millwork Sections	Internal construction, material thicknesses, depths, supports and fixing conditions	Explain how components shown in plans and elevations fit together and connect to surrounding surfaces.
Millwork Detail Drawings	Enlarged joints, edge profiles, reveals, fixings and material transitions	Clarify complex construction conditions that cannot be communicated clearly in the main views.

What Should You Check Before Issuing Millwork Drawings?

These drawings are not a set of unrelated documents that happen to depict the same design, they are a coordinated set of views of the design where each view contains information not available in the others

Check the dimensions: Make sure that the overall sizes, components, and critical clearances are consistent in all drawings.
Check the callouts: All sections and enlarged details must be properly identified.
Check materials: Determine the relevant substrates, finishes, thicknesses, and transitions of materials.
Critical connections and fittings: Describe the concealed supports, fixings or joints that may be of interest during the building or installation.
Check the site interfaces: Confirm all the critical wall, floor, ceiling, and service interfaces with the available project information.
Check the revisions: Make sure that the drawing reflects the latest approved changes and identify the issue status.
