If your drafting team must reuse the same title block, layer set, and dimension styles for each new project, you’re spending money on work that has already been completed. A properly built CAD drawing template will get rid of that redundancy.

In this comprehensive guide, we will discover the key elements of an effective CAD drawing template, its purpose in production processes, and the advantages of working with specialised CAD Design & Drafting services that can streamline your firm’s technical output.

What Are CAD Drawing Templates?

A CAD drawing template is a master file, which stores the user’s standards for layers, units, title blocks, dimensions, text styles, and plotting. This file is used for all drawings and can be opened by drafters to begin working on a new project right away.


CAD drawing templates are used within the architecture, millwork, mechanical sheet metal and many other industries, where it is important to have computer-aided designs that are consistent and fabricated to standard specifications.

What Format Does a CAD Template Use?

The format of the file is determined by the CAD software and the requirements of the working team. AutoCAD, for instance, uses .DWT as the extension of a drawing template file. This file contains specific settings and elements that AutoCAD uses as a basis for drawings created with the program. With the help of separate templates, users can determine the specific conventions and settings for their team or project.

For instance, various templates may be employed for drawings made by mechanical and architectural engineers. The two professional groups have different requirements and conventions, such as layer setup, annotation standards and sheet formats.

An alternative is to develop a template derived from a current drawing. This can be done by removing all the information that is specific to a particular project and ensuring general settings are correct.

Before choosing or creating a template, consider three questions:

  • Which software will the team use? Confirm that the template works with the relevant CAD application and version.
  • What type of drawings will it support? Architectural plans, mechanical details and millwork drawings may require different standards.
  • Who will use the drawings next? Designers, reviewers, clients and production teams may have different documentation requirements.

The aim is to create a template that supports the actual workflow, rather than adding settings that nobody needs.

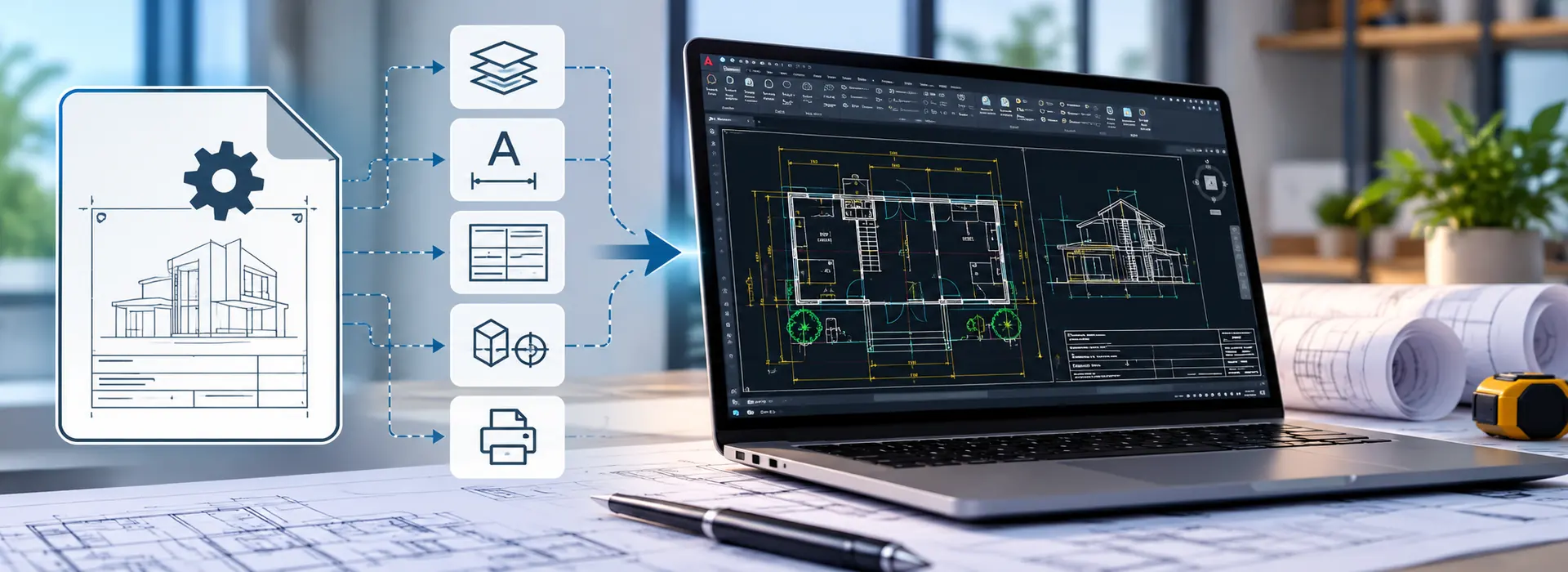

What Should a Professional CAD Template Include?

This is where most templates fall short. Teams include a title block and stop there, then wonder why drawings still arrive inconsistent. A professional template covers eight areas.

1. Document and File Settings

Set drawing units, precision, angle direction, and insertion scale. Set the limits and model space extents for the drawing. Set the coordinate system that you work in for your projects. These settings then get applied to every drawing that you create using this template, avoiding an entire class of potential alignment issues.

2. Layer Standards

Layers serve as the backbone of the drawing. Create a comprehensive layer list that will define a complete set of layers to be used on each project. Make sure to specify all the disciplines, colors, line weights, and line styles that are required for your clients. Add layers for dimensions, text, hidden lines, center lines, hatching, and construction geometry. The layer states for locked and frozen layers should also be assigned during this stage to avoid conflicts while working on a project.

3. Text and Dimension Styles

Define text styles using the fonts, heights, and widths specified by your company’s standards. Create dimension styles for each plotted scale you use on a regular basis, not just one style. Include styles for linear, angular, radial, and ordinate dimensions, as well as leader and multileader styles. Annotation becomes a consistent value when styles are created in advance.

4. Title Blocks and Sheet Borders

Create title blocks for every standard sheet size you issue: A4, A3, A1, and ANSI equivalents. Include fields for project name, drawing number, revision, scale, date, drawn-by, and checked-by. Better still, link these to sheet set manager fields so information populates automatically instead of being typed by hand.

5. Blocks and Symbols

Pre-load the symbols that your team repeatedly uses, section markers, elevation tags, revision clouds, north arrows, scale bars, weld symbols, and hardware callouts. Standard blocks mean standard representations, a critical consideration for drawings that are passed on to fabrication.

6. Annotation and Documentation Tools

Include table styles for cut lists and bills of materials, plus layouts with appropriate page setups for plotting. Configure the default plot style table (.CTB or .STB) to ensure line weights are maintained in plotted drawings and PDFs.

7. Standards and Naming Conventions

Record your layer naming logic, file naming structure, and revision conventions within the template file itself, typically as a notes layer or an embedded reference sheet. New team members and external partners then inherit the standard rather than guessing at it.

8. Project-Specific Customisation Hooks

Leave clearly marked space for project variables such as client logo blocks, project-specific layers, and discipline overlays. A tight template is abandoned; a sloppy template ceases to be a standard. The professional balance point is a fixed core with clearly defined extension points.

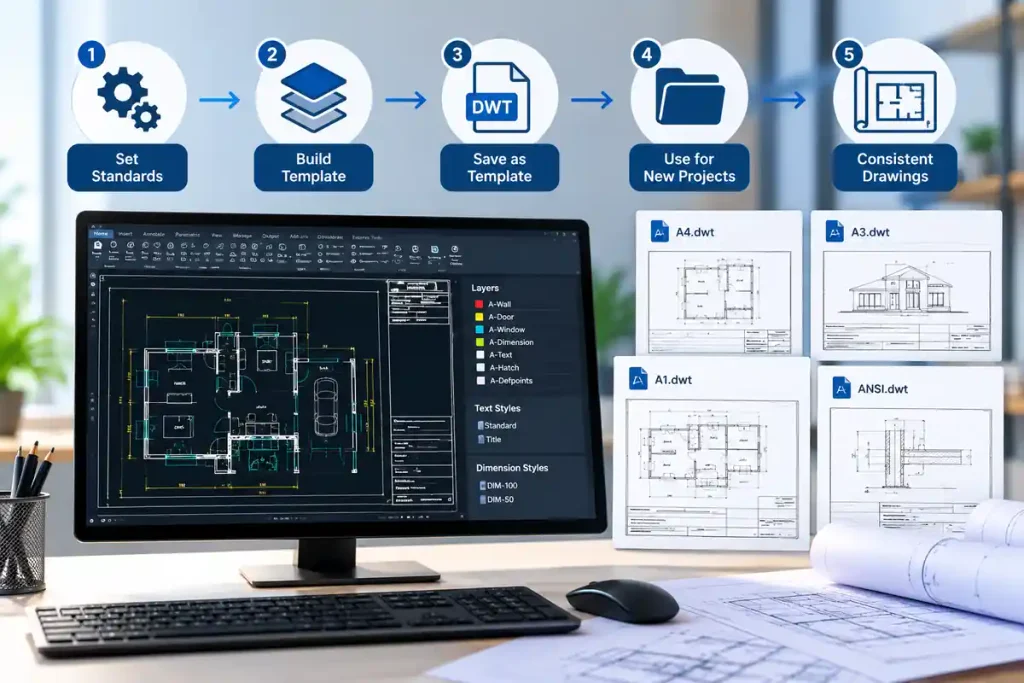

How to Create and Use a CAD Drawing Template

Creating a template is not simply a matter of saving an existing drawing as a DWT file. The settings need to be reviewed and tested before the template becomes a company standard.

Step 1: Define the Drawing Requirements

Identify the drawing types, the software, units, sheet sizes and documentation standards the team uses. Speak to the people who create, review and receive the drawings.

This will help to distinguish between requirements and wishes.

Step 2: Set Up the Drawing Standards

Configure layers, line types, text styles, dimension settings, layouts and title blocks. Adopt naming conventions that feel intuitive to everyone on the team.

If the business is multidisciplinary, create separate templates because a set of standards might not be compatible with all disciplines.

Step 3: Remove Project-Specific Information

If you are adapting an existing drawing, remove obsolete geometry, client details, outdated notes and unnecessary references. Check that the remaining elements are suitable for reuse.

Step 4: Save and Test the Template

In AutoCAD, save the prepared drawing as a drawing template file (.DWT). Open a new drawing from that template and check whether the expected settings and elements appear correctly.

Test a sample drawing through editing, review and plotting. If the business exchanges files with external teams, test the relevant file-sharing workflow as well.

Step 5: Document and Maintain the Standard

Give users clear instructions on which template to select and when to use it. Assign responsibility for approving changes, and update the template when project standards, software requirements or business processes change.

A template should be treated as a maintained business resource, not a file that is created once and forgotten.

Common CAD Template Mistakes to Avoid

Even a well-designed CAD template can cause problems if teams overlook important settings or fail to maintain it. Avoid these common mistakes:

  • Incorrect units and scale: Inappropriate settings may cause confusion when sharing and preparing drawings for production.
  • Inconsistent layer standards: Inappropriate layer nomenclature and organisation can make it harder to edit, review and manage drawings.
  • Outdated title blocks: Outdated project details, revision fields or company information can end up causing documentation errors.
  • Unnecessary elements: Too many layers, symbols or predefined details can hamper the usability of a template.
  • Untested plot settings: Incorrect page setups, line weights or text sizes can affect the final drawing output.
  • Ignoring template updates: Failing to update templates when requirements change can lead to inconsistencies in drawings across teams.

Review and test your CAD template before making it the team’s standard. A simple, well-maintained template is more useful than a complicated one that does not reflect actual project requirements.

How Shalin Designs Can Support Your CAD Workflow

Shalin Designs is a strategic partner to firms requiring additional technical drafting resources for architectural, engineering, product design and manufacturing projects. Its services include 2D CAD drafting, 3D product modelling, millwork and shop drawings, mechanical sheet metal design and conversion of legacy drawings into digital CAD files.

For teams looking to establish or update their CAD standards, this assistance can help prepare uniformed drawing documentation, organise technical information and modify existing drawings to meet specific project needs.

If your business needs help preparing drawing templates, standardising existing CAD files or managing a larger drafting workload, explore Shalin Designs’ CAD design & drafting services. Discuss your drawing requirements, software environment and intended deliverables to determine the level of support your team needs.

Final Takeaway

A good CAD drawing template makes everyday drafting easier. It gives your team a consistent starting point, reduces repeated setup work and helps keep drawings organised as projects grow. The key is to build a template around your actual project requirements and keep it updated as your workflow changes.

If you need help creating drawing templates, standardising existing CAD files or managing additional drafting work, Shalin Designs can support your team with the best CAD services. Get in touch with Shalin Designs to discuss your requirements and find the right support for your next project.
