Millwork Shop Drawings vs Design Drawings: What’s the Difference?
Every millwork package that comes onto the site starts with a drawing. And here’s a revelation that very few project teams learn about far too late: not every single drawing serves the same purpose. Knowing the fundamental difference between shop drawings vs design drawings will keep you from making a fabrication mistake, issuing a change order, and blowing your project schedule into the stratosphere.
If you are an architect, contractor, or specifier managing custom joinery, wall paneling, or bespoke cabinetry, understanding the difference between millwork shop drawings and design drawings is not academic. It works. Design drawings show what the building should look like, while shop drawings provide the instructions needed to build it.
In this guide, you will learn the main differences between these drawing types, how they complement each other throughout the project, as well as when it is a good idea to turn to professional shop drawing services to aid you in achieving better coordination, accuracy, and preparation for fabrication.
What Are Millwork Shop Drawings?
Millwork shop drawings are detailed technical documents that show how a specific millwork component is intended to be fabricated, assembled, coordinated, and installed. They take the information established in the design documents and develop it into practical technical information that fabricators, contractors, and installers can use. Millwork drawings depend on the nature of the project, and they can include plans, elevations, sections, details, dimensioning, materials, finishes, hardware, joints, method of construction and installation.

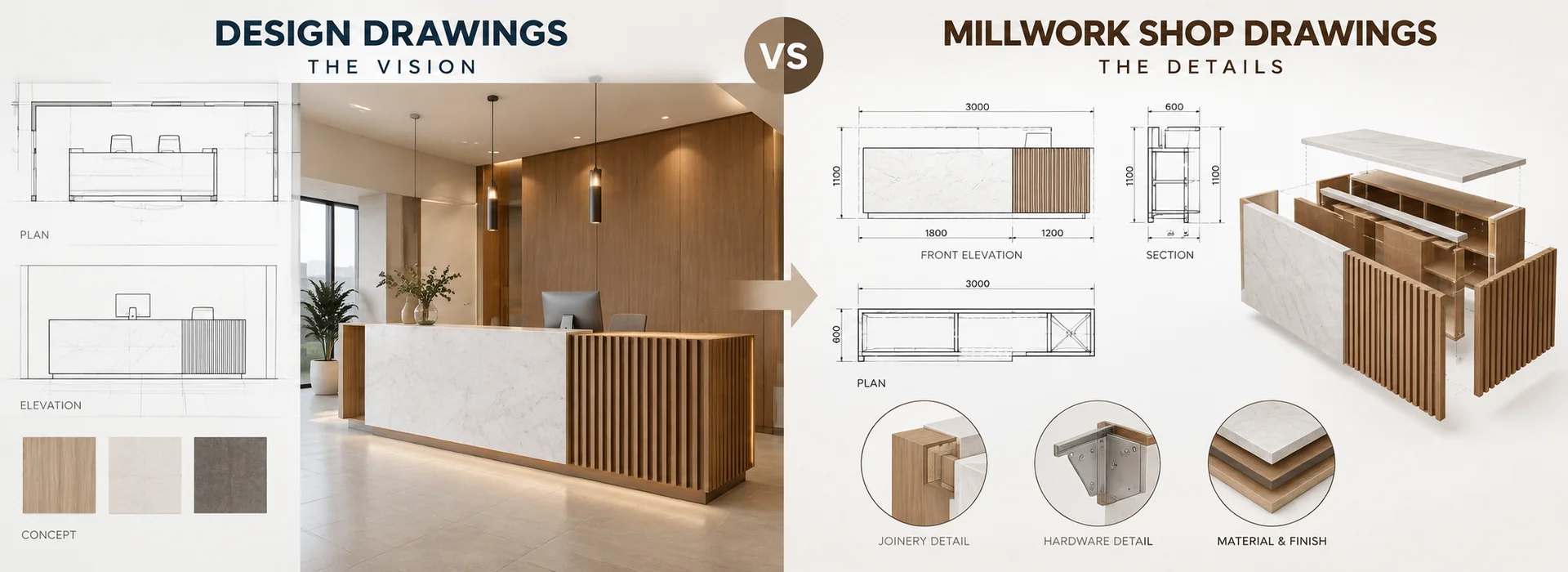

For example, an architectural drawing could show the reception desk along with its dimensions, position, and look. The millwork shop drawing would give all the necessary details for manufacturing the desk, such as its dimensions, material build up, interior structure, fastening mechanism, etc.
The level of detail depends on the complexity of the millwork, project specifications, fabrication requirements, and the submission requirements established by the project team.
The Role They Play in Your Project
Millwork shop drawings act as the technical link between design intent and fabrication, giving fabricators and installers clear information on construction, materials, finishes, hardware, fixing methods, and installation. They also help coordinate millwork with walls, ceilings, floors, structural elements, and building services, allowing potential conflicts to be identified before fabrication.
This shared technical reference can reduce rework, material waste, installation changes, and delays. The importance of millwork drafting in furniture designs becomes particularly clear when design information needs to be developed into practical documentation for fabrication and installation.
What Are the Benefits of Millwork Shop Drawings?
Detailed shop drawings provide several practical benefits during the fabrication and installation stages:
- Greater fabrication accuracy: Precise dimensions and fabrication data provide the fabricator with greater accuracy.
- Better project coordination: The millwork can be coordinated against the wall, floor, ceiling, services, and adjacent elements.
- Earlier detection of problems: Potential conflicts, missing information, and dimensional problems can be detected early.
- Detailed installation instructions: The installer is informed about the location of the component, its method of fixing, and assembly.
- Reduced rework: Solving problems early on will help to minimize the waste material, variations, and time lags.
- Improved communication: For the millwork, architects, contractors, fabricators, and installers share a technical guide.
What Are Design Drawings?
Design drawings are documents created to communicate the architect’s or designer’s intended appearance, layout, functionality, and overall requirements of a project.
For millwork, these design drawings may show where a cabinet, reception desk, wall panel, counter, or other feature is located and how it should appear within the space.
They can include floor plans, elevations, sections, schedules, design details, and other architectural drawings used to communicate the overall project intent.
Design drawings establish the design intent, but they do not necessarily contain every technical detail required for fabrication and installation.
For example, the elevation drawing may show the overall dimensions and appearance of a wall-mounted cabinet, but the fabrication drawing may need to include information about the panel thickness, joints, edges, fastenings, and how the internal components of the structure have been made.
The Critical Role They Play
The shop drawing relates the two disciplines in this manner. If there is a representation of the shape of the crown molding on the design drawing, then there will be the specification of the router bit, the back cut angle, and the scribe allowance for an irregular ceiling line on the shop drawing. When the design drawing indicates the presence of the veneer match on four panels, then the shop drawing will represent the flitch pattern and panel numbering.
This is why shop drawing services are not a luxury. They are the control mechanism that prevents a beautiful concept from becoming an expensive field mistake
What Are the Benefits of Design Drawings?
Design drawings provide the foundation for developing detailed millwork documentation.
- Convey design intent: They convey the look, proportions, placement, and functioning of the millwork.
- Determine requirements of the project: Materials, finishes, measurements, and other design parameters can be determined from them.
- Coordinate design: They reveal how the millwork relates to the other architectural features.
- Prepare further technical drawing work: They supply the information required to produce more detailed construction drawings.
- Conduct reviews and get approvals: The clients and the project team can assess the design before fabrication.
- Ensure design integrity: They serve as a standard against which the design is measured after fabrication.
Shop Drawings vs Design Drawings: Key Differences
The primary difference between millwork drawings and design drawings is the level of detail and purpose of each set of plans.
Design drawings convey the designer’s intent whereas shop drawings contain more information pertaining to the fabrication and installation of a specific component.
| Parameter | Design Drawings | Millwork Shop Drawings |
| Primary purpose | Communicate design intent | Communicate fabrication and installation requirements |
| Main focus | Appearance, layout, dimensions and function | Construction, materials, dimensions, hardware and installation |
| Designed for | Architects, designers and project stakeholders | Fabricators, manufacturers, contractors and installers |
| Level of detail | Design and project level | Component and fabrication level |
| Typical information | Plans, elevations, sections and design details | Detailed plans, elevations, sections and construction details |
| Fabrication information | General design information | Detailed fabrication requirements |
| Hardware information | Design level information | Detailed hardware specifications and locations |
| Installation information | Overall location and design intent | Detailed fixing, assembly, and installation requirements |
| Purpose in production | Establishes what needs to be achieved | Helps explain how the component can be produced |
| Approval | Forms part of the design documentation | Subject to project specific review and approval requirements |
How Does Millwork Detailing Work With the Shop Drawing Process?
Millwork detailing and shop drawings work together to move a project from design intent to fabrication and installation. Detailing develops the technical information for each component, while the shop drawing process organises that information into coordinated documents for review, approval, fabrication, and installation.
The process typically follows these steps:
1. Review the Design Information
The process begins by reviewing the design drawings, architectural drawings, specifications, schedules, dimensions, material requirements, finishes, and other available project information. The objective is to understand the design intent and identify the requirements that the millwork documentation needs to capture.
2. Develop the Millwork Details
The next phase is millwork detailing. Every item is designed with all the technical data required to build it, such as dimensions, thicknesses, joints, hardware, interior structure, fixings, and interfacing with other surrounding parts.
3. Develop the Shop Drawings
The developed information is then organised into detailed shop drawings and fabrication drawings. Plans, elevations, sections, detailed drawings, dimensions, materials used, and method of construction are put together into a technical document which gives the instructions on how the millwork is meant to be made and installed.
4. Coordinate the Drawings
The technical drawings will be compared to the general project information to see where conflicts may arise. These include wall conflicts, ceiling conflicts, floor conflicts, structural conflicts, mechanical, electrical, plumbing conflicts, and millwork/finish conflicts.
5. Submit for Review
After coordination of the drawings, they are sent out to the appropriate project stakeholders for their review. The architects or contractors can use these drawings to compare the proposed millwork against the original design and project requirements.
6. Revise and Obtain Approval
All comments and changes are put into the drawings. The documents are submitted again as many times as are needed until the information is reviewed and accepted. The resulting approved shop drawings provide a reliable technical reference for the fabrication stage.
7. Proceed to Fabrication and Installation
Final drawings are utilised by the fabricators in the production of the millwork parts and by the installers in comprehending the dimensions, location, fixing, and installation information.
By connecting millwork detailing with the shop drawing process, project teams can create a clearer path from architectural drawings to fabrication and installation. Even more importantly, possible problems can be detected and fixed prior to manufacturing, thus minimizing rework, wastage, and delays.
Which Service Should You Choose and When?
The right service depends on the stage of your project and the level of technical information you already have.
Choose Millwork Detailing and Shop Drawing Services When:
- You already have architectural or design drawings but need detailed fabrication and construction information.
- The project requires custom cabinet work, wall paneling, reception counters, accent walls, or other special millwork.
- This special work will require exact measurements, materials, hardware, joinery, mounting methods, and fabrication details.
- Special millwork has to coordinate with the walls, ceilings, floors, structure, or building systems.
- Drawings need to be ready for fabrication, erection, review, and approval.
- One needs to detect design conflicts and technical problems before manufacturing.
Choose Design Drawings When:
- Your development of the design concept, layout, appearance, and intent for the millwork is ongoing.
- You need to convey the design to the client, architect, or other project participants.
- The key consideration is to define overall dimensions, positioning, proportions, materials, finishes, and appearance.
- You are at an early stage of design and do not yet need fabrication information.
- You need a design tool from which you can develop fabrication information later on.
Why Choose Shalin Designs for Millwork Drafting?
Shalin Designs helps architects, contractors, fabricators, and joinery professionals turn design information into clear, coordinated technical documentation for fabrication and installation.
Its millwork drafting services can support cabinetry, architectural millwork, custom woodwork, retail fixtures, and other project-specific components. CAD drafting and 3D modelling capabilities can also help project teams review dimensions, configurations, and design details before production.
By developing clear and coordinated documentation from the available architectural drawings, specifications, and project requirements, the process can become easier to manage across design, fabrication, and installation stages.
Final Takeaway
Design drawings and fabrication drawings have different roles, but both contribute to the successful delivery of a millwork project. Design drawings establish the intended appearance, layout, and overall requirements, while detailed drawings develop those requirements into detailed technical information for fabrication and installation.
Understanding the difference between shop drawings and design drawings helps project teams know what information is available at each stage and where additional technical development may be required.
For complex millwork, accurate documentation can also help identify dimensional conflicts, material requirements, hardware details, and coordination issues before production begins. This creates a more structured path from architectural design to fabrication and installation.
